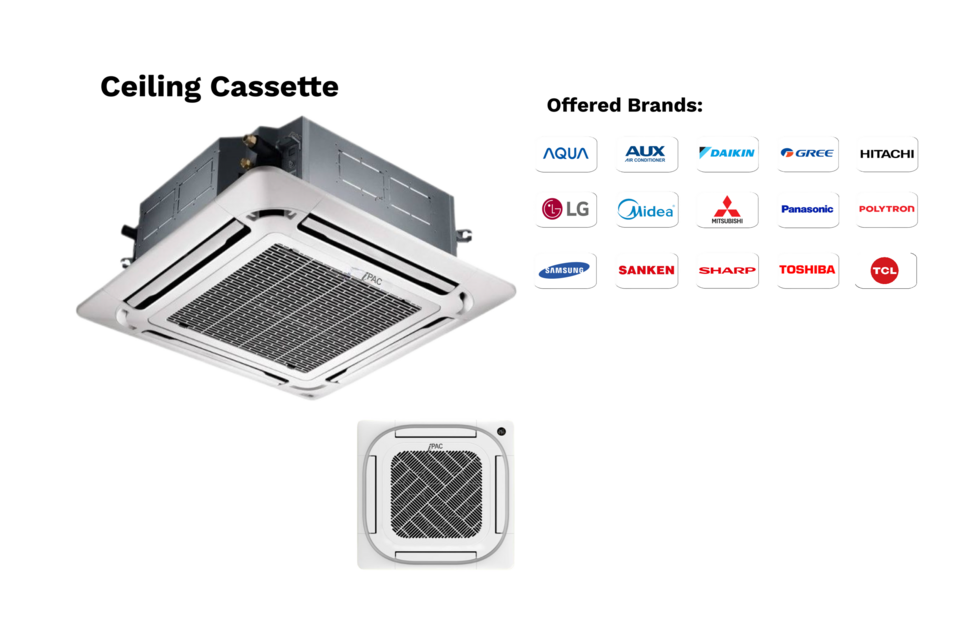

Commercial Ceiling Cassette AC

Four-way airflow ceiling cassette air conditioners for hotel lobbies, ballrooms, meeting rooms, and large open commercial spaces. Uniform cooling throughout every corner — no cold spots, no dead zones.

Minta Penawaran via WhatsApp
Kembali ke Sistem Pendingin Udara |Commercial Ceiling Cassette AC
Commercial Ceiling Cassette AC - Makro Jaya Perkasa

Ikhtisar

Ceiling cassette air conditioners are the preferred choice for commercial spaces that require even, comprehensive cooling across large open-plan areas. Unlike wall-mounted units that deliver airflow in one direction, the cassette unit installs flush into the ceiling and distributes conditioned air in four directions simultaneously — covering every corner of the room without cold spots or air stratification.

For hotel lobbies, restaurant dining areas, ballrooms, corporate reception floors, and hospital waiting areas, the ceiling cassette offers both superior air distribution and an aesthetically clean installation. The unit integrates seamlessly into suspended ceilings, with only the decorative panel visible — an important consideration for premium hospitality and commercial environments.

Fitur Utama

?

4-Way Simultaneous Air Distribution

Air is discharged in four directions at once, ensuring uniform temperature distribution throughout the room. Eliminates cold spots near the unit and warm corners far from it — critical in hospitality and commercial settings where occupant comfort is paramount.

??

Concealed Ceiling Installation

The unit body sits above the suspended ceiling, with only the slim decorative panel visible from below. Ideal for premium interiors — hotel lobbies, restaurant dining rooms, and executive boardrooms where aesthetics matter as much as performance.

?

High-Capacity Inverter Compressor

Available from 1.5 PK up to 5 PK, cassette units handle large open spaces efficiently. Inverter technology adjusts output to maintain target temperature without the energy waste of on/off cycling — delivering up to 50% energy savings versus non-inverter systems.

??

Auto-Swing Louvers with Draft Control

Individual louver control on each panel allows airflow direction adjustment to suit occupancy patterns. Auto-swing mode continuously redistributes air for consistent comfort across changing occupancy zones in restaurants and lobbies.

?

High Ceiling Performance

Engineered for spaces with ceiling heights of 2.5m to 4.5m. Powerful fans ensure conditioned air reaches floor level even in tall commercial spaces such as atriums, convention halls, and double-height hotel lobbies.

?

BMS & Centralized Control Compatible

Full compatibility with building management systems enables centralized scheduling, energy monitoring, and remote diagnostics across all cassette units in a property — essential for large hotels and multi-floor office buildings.

Spesifikasi Teknis

Cooling Capacity1.5 PK (14,000 BTU/h) – 5 PK (48,000 BTU/h)
Energy RatingHigh-efficiency inverter; COP up to 4.2 (model dependent)
Airflow Direction4-way simultaneous; 2-way and 3-way modes also available on select models
Noise Level (Indoor)26 – 46 dBA depending on fan speed and capacity
Ceiling Opening RequiredApprox. 570 × 570 mm (standard 600 × 600 mm ceiling tile)
RefrigerantR-32 / R-410A depending on model
Max Ceiling HeightUp to 4.5 m effective distribution
Power Supply220V – 240V / 50Hz (single phase) or 380V – 415V / 50Hz (3-phase for large capacity)
Control OptionsWireless remote, wired controller, BMS/central control interface
Merek TersediaDaikin, Panasonic, Mitsubishi, LG

Aplikasi Bisnis Ideal

?

Hotel Lobbies

Uniform cooling across large, open hotel lobbies and reception areas with high foot traffic and varying occupancy.

??

Restaurant & Dining

Consistent ambient temperature across restaurant dining rooms without uncomfortable direct airflow onto seated guests.

?

Meeting & Conference Rooms

Even cooling for large conference rooms and boardrooms with multiple occupants and high heat load from equipment.

?

Hospital Waiting Areas

Clean, uniform airflow in hospital waiting rooms and reception areas serving diverse patient populations.

?

Retail Showrooms

Comfortable shopping environment across open-plan retail floors, car showrooms, and product display areas.

?

Ballrooms & Event Spaces

High-capacity cooling for ballrooms, convention halls, and event spaces accommodating large gatherings.

Merek Tersedia

Daikin

FCQ series ceiling cassette. Streamer discharge purification. Round flow cassette design for superior air distribution and energy performance.

Distributor Resmi
Panasonic

PACi series commercial cassette. Econavi sensor for intelligent energy management. Standard and mini cassette options for varied ceiling configurations.

Distributor Resmi
Mitsubishi

Mitsubishi Electric SLZ/PLZ cassette series. Wide airflow with 3D airflow blade technology. Preferred by premium hotel chains across Southeast Asia.

Distributor Resmi
LG

LG DUAL Inverter cassette series. Auto-cleaning evaporator. Compact design compatible with standard 600mm ceiling tile grid.

Distributor Resmi
